System Efficiency Graphs

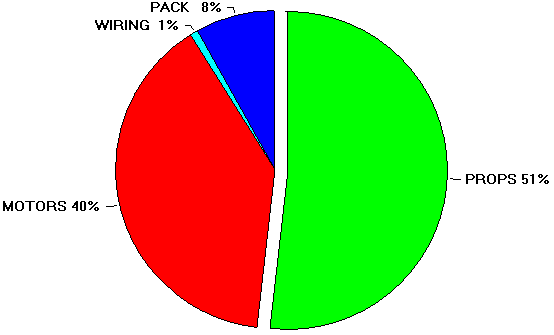

This graph simply shows you where your power is going. If the motors had gearboxes, there would be an additional slice for this loss. You can print this graph along with descriptive data by simply clicking the Print button. If you print in Landscape, you will get a larger graph without the data. Return gets you back.
